KLE-NGKeyboard Layout Editor NG
A modern reimplementation of the Keyboard Layout Editor — better UX, KLE compatibility, and built-in plate and PCB generators.
Skip to content

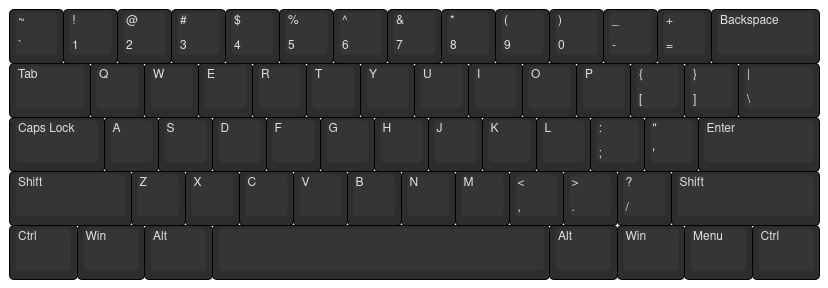

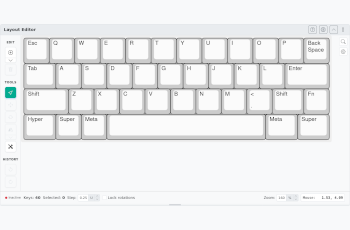

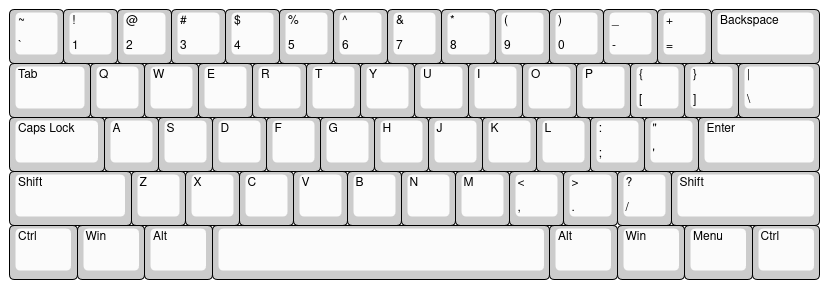

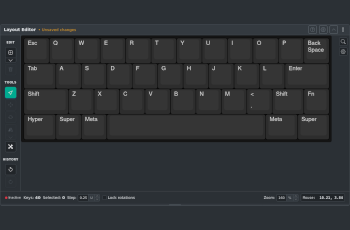

Layout Editor
Full-featured canvas editor with keyboard shortcuts, precise movement tools, mirror and rotate tools, and extra tools for bulk editing.
Learn more →

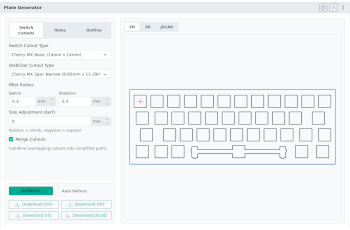

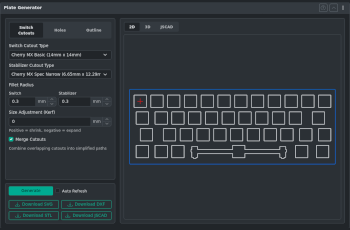

Plate Generator
Create switch and stabilizer cutouts for manufacturing. Exports to SVG, DXF, STL, and JSCAD. Supports Cherry MX, Alps, Kailh Choc.
Learn more →

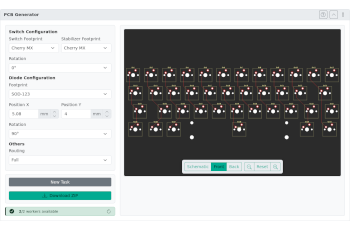

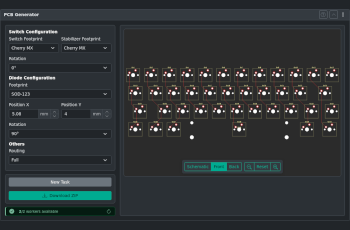

PCB Generator
Generate KiCad PCB project files directly from your keyboard layout with switch matrix schematic and routed connections.
Learn more →
