Import & Export

kle-ng supports importing and exporting keyboard layouts in multiple formats.

Supported Formats

KLE JSON

The standard Keyboard Layout Editor JSON format.

• Import and export layouts compatible with keyboard-layout-editor.com
• Supports both raw array format and internal format with metadata

PNG

• Export: Layouts are exported as PNG images with embedded layout data. Zoom in on the canvas before exporting to increase output resolution — the export captures the canvas at the current zoom level.
• Import: PNG files with embedded layout data can be re-imported to recover the editable layout — useful for sharing and archiving

TIP

Zoom in on the canvas before exporting to PNG to increase the output image resolution.

HTML and SVG

• HTML export: Produces a self-contained document (embedded CSS, no external dependencies) that renders the keyboard in any browser
• SVG export: Produces a vector graphics file suitable for embedding in documents or editing in vector tools
• Both formats are visually consistent with the editor, including support for rotated keys, ISO/non-rectangular shapes, homing nubs, rotary encoders, ghost and decal keys
• Import is not supported for HTML or SVG

VIA/Vial Format

VIA and Vial are keyboard configuration tools that use a special JSON format. VIA format wraps KLE layout data with additional metadata (keyboard name, vendor/product IDs, matrix configuration).

On import, kle-ng converts VIA format to KLE format and preserves VIA-specific metadata in a _kleng_via_data field, maintaining full compatibility. VIA layouts can be imported in two ways:

• From File: Browse for a VIA layout JSON file on your computer
• From VIA: Search and import directly from a curated database of VIA-ready keyboards via Import → From VIA modal, without needing to download the JSON file manually

The From VIA modal previews layouts before you commit to one — see Previewing before you import.

On export, layouts containing _kleng_via_data metadata can be exported back to VIA JSON format using Export → Download VIA JSON.

Imported file	Import result
{ "name": "Test VIA Layout", "vendorId": "0x1234", "productId": "0x5678", "matrix": { "rows": 2, "cols": 4 }, "layouts": { "keymap": [ ["0,0", "0,1", "0,2", "0,3"], ["1,0", "1,1", "1,2", "1,3"] ] } }	Open in editor →

See VIA & Vial Format for detailed information.

QMK Format

QMK info.json files can be imported directly. kle-ng converts key positions, dimensions, and matrix coordinates into KLE format.

WARNING

QMK info.json files often do not convey exact physical key positions, particularly rotations. QMK imports may not be suitable for PCB or plate generation without careful verification of key positions. Always check rotation and positioning thoroughly before using the output for manufacturing.

Single-Layout Import

Imported keys receive:

• Positions from x, y values
• Dimensions from w, h (default: 1×1)
• Rotation from r, rx, ry
• Matrix coordinates in the top-left label as row,col

Imported file	Import result
{ "keyboard_name": "Example", "manufacturer": "Example", "layouts": { "LAYOUT_default": { "layout": [ { "matrix": [3, 3], "x": 4, "y": 4.25 }, { "matrix": [3, 4], "x": 4, "y": 4.25, "r": 15, "rx": 4.5, "ry": 9.1 }, { "matrix": [3, 5], "x": 4, "y": 4.25, "h": 1.5, "r": 30, "rx": 5.4, "ry": 9.3 } ] } } }	Open in editor →

Why QMK and VIA represent layout alternatives differently

VIA and QMK use fundamentally different models for keyboards that support multiple physical configurations — and automatic conversion between them is not possible.

VIA defines layout alternatives as options and choices. Each option is an independent physical variable (e.g., "Backspace style"), and each choice is one variant of that variable (choice 0 = regular 2u, choice 1 = split 1u+1u). Options are independent: the user picks one choice per option, and VIA handles all combinations implicitly.

QMK defines complete, named layout configurations. Each layout — LAYOUT_ansi, LAYOUT_iso, etc. — is a standalone list of physical key positions. The firmware author decides which specific combinations to ship; there is no structural information linking layouts back to option/choice groups.

Example. A keyboard supports two independent options: backspace style (regular or split) and enter style (ANSI or ISO). That gives up to four combinations. Its QMK info.json might define only three:

"layouts": {
  "LAYOUT_ansi":       { "layout": [ ...2u backspace + ANSI enter... ] },
  "LAYOUT_iso":        { "layout": [ ...2u backspace + ISO enter...  ] },
  "LAYOUT_split_ansi": { "layout": [ ...split backspace + ANSI enter... ] }
}

Reading those three layouts there is no structural information that says "the backspace difference is one independent option and the enter difference is another." The VIA option/choice tree cannot be recovered from a QMK file — and conversely, a QMK file may define only a subset of all possible combinations, so the VIA tree cannot be automatically flattened to QMK either.

The labels[9] membership tag (kle-ng internal)

Because automatic conversion between QMK layouts and VIA option/choice is impossible, kle-ng uses a dedicated mechanism for QMK round-trips: a layout membership tag stored in labels[9] (the bottom-left legend position).

When kle-ng imports a QMK file with multiple layouts it tags each key with the set of QMK layout indices that contain it, using a semicolon-separated list:

labels[9] value	Meaning
"" or absent	Shared — appears in every layout
"0"	Belongs to QMK layout 0 only
"1;2"	Belongs to QMK layouts 1 and 2

This tag has no equivalent in either QMK or VIA — it is a kle-ng invention used solely to make QMK import → edit → export round-trips accurate. It is deliberately different from the VIA option,choice scheme (which uses a comma-separated N,M pair and is read from labels[8] by default), so QMK-imported keyboards are never treated as VIA keyboards.

Multi-Layout Import

When a QMK file declares multiple layouts, kle-ng imports all physically distinct key configurations from all layouts into a single flat view. This preserves the complete superset of physical switch positions:

• Shared keys — Keys that are physically identical across every layout (same matrix position, x, y, width, height, rotation) are imported once with no tag. These keys will appear in every layout when exported.
• Layout-specific keys — Keys that appear in only some layouts, or keys at the same matrix position with different dimensions in different layouts, receive a small label indicator showing which layout indices they belong to. This tag appears in the labels[9] position (the bottom-left area of the key label).
  • Format: "0" for layout 0, "1;2" for layouts 1 and 2, "0;1;2" for all three, etc.
  • Users see this as a small number or fraction on the key cap (e.g., a key tagged "1;2" shows as appearing in layouts 1 and 2 only).

TIP

When a QMK file has multiple layouts, kle-ng imports all physical switch positions into a single flat view — equivalent to a LAYOUT_all superset. A QMK layout preview toolbar appears below the canvas, letting you preview individual layouts. Layout-specific keys are tagged with their layout indices so the export can reconstruct the original named layouts accurately.

QMK Layout Preview Toolbar

When a multi-layout QMK file is loaded, a QMK Layout Preview toolbar appears below the canvas:

• An "all" button — shows all imported keys in the flat editable view
• Numbered buttons — one per QMK layout (0, 1, 2 …). Hover over a button to see the full layout name (e.g., LAYOUT_iso)

Click a numbered button to enter preview mode for that layout. In preview mode only keys belonging to that layout are shown, the canvas is read-only, and a hint reads "QMK layout preview (readonly) — switch to all to edit". Click "all" to return to the normal editable view.

The toolbar is hidden for single-layout keyboards and for keyboards without QMK membership tags.

After importing a QMK layout, you can use the PCB Generator immediately since matrix coordinates are already assigned.

On export, layouts with matrix-annotated keys can be exported back to QMK info.json format using Export → Download QMK JSON. The reconstructed layout includes all original QMK metadata (keyboard_name, manufacturer, processor, USB config, etc.) merged with your updated key positions and dimensions.

See QMK Export below for detailed information.

Previewing before you import

The Import → From QMK and Import → From VIA modals show a preview of the layout next to the search results, so you can tell boards apart without loading each one into the editor and losing your current work.

Hover a result (or move to it with the arrow keys) and kle-ng downloads that keyboard's definition in the background and draws it using the same renderer as the main canvas. A loading bar appears while the download is in progress. You can wait for it, or move straight on to another result — the abandoned download is cancelled. Results you scroll past are fetched speculatively, so previews for nearby entries usually appear instantly.

Selecting pins the preview. Click a result and the preview holds on it — marked Selected — so moving the pointer across other rows on the way to the Import button doesn't swap out what you were reading. Click the selected result again to deselect it, which unpins the preview and lets hovering drive it once more.

The preview shows what pressing Import will actually produce, including matrix legends. For keyboards that define more than one layout, arrows under the preview step through the variants:

• QMK — one entry per LAYOUT_* macro (e.g. LAYOUT_ortho_4x12, LAYOUT_planck_2x2u)
• VIA — a Default entry with every option at choice 0, then one entry per alternative choice, named from the definition's layouts.labels

Cycling variants is preview-only; importing always loads the complete layout, and you pick the variant you want afterwards from the layout toolbar below the canvas.

The preset library uses the same renderer, but draws every card as it scrolls into view rather than on hover — the preset payloads ship with kle-ng, so there is no download to wait for or abandon.

Because the preview has already downloaded the definition, pressing Import on a keyboard you previewed does not re-request it. Nothing is downloaded until you hover — opening the modal on its own only fetches the keyboard index.

Ergogen Format

Ergogen is a keyboard layout generator that uses YAML configuration. kle-ng can import:

• Ergogen YAML files directly
• Ergogen share URLs (e.g., https://ergogen.xyz/#N4Igxg9gdg...)

kle-ng decodes the URL, processes it with the Ergogen library, and converts the result to KLE format for editing.

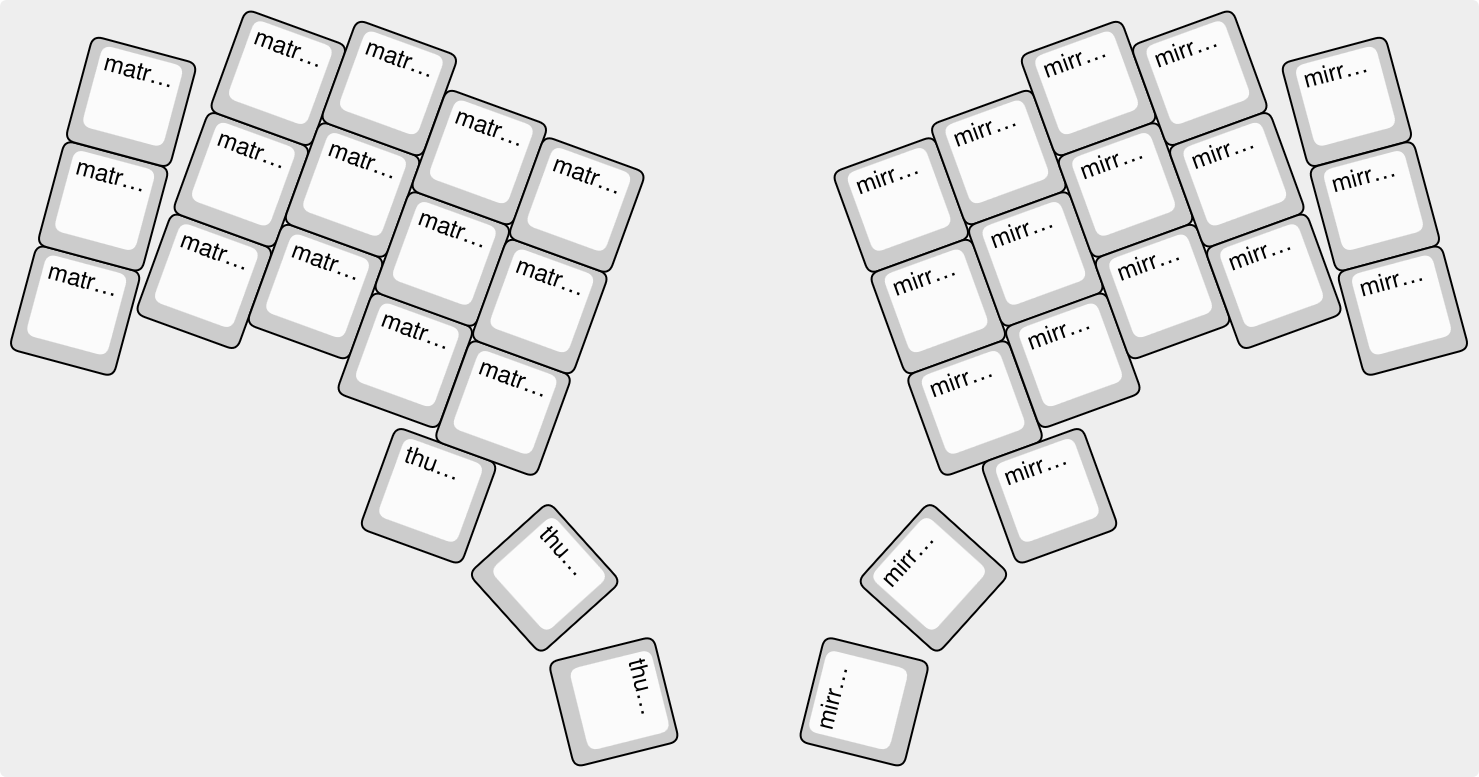

Imported file	Import result
meta: engine: 4.1.0 points: zones: matrix: anchor: rotate: 5 # [...cut for readability...] rotate: -20 mirror: ref: matrix_pinky_home distance: 223.7529778	Open in editor →

INFO

kle-ng does not support export to Ergogen format.

WARNING

kle-ng aims to preserve exact key positions when importing Ergogen layouts, but always double-check alignment when mixing outputs from different tools (e.g., Ergogen for PCB + ai03 Plate Generator for plate).

Importing

kle-ng supports multiple import methods:

Import Button

Click the Import button in the toolbar and select:

From File — Browse for a file on your computer. Supported formats: JSON (KLE, VIA/Vial, QMK), PNG (with embedded layout data), Ergogen YAML

From URL — Enter any of the supported URL formats:

• Direct JSON URL (any publicly accessible JSON file)
• GitHub Gist URL
• Ergogen share link (https://ergogen.xyz/#...)
• Existing kle-ng share link

From QMK — Search and import any keyboard directly from the QMK keyboard database. A searchable list of all available keyboards is loaded from keyboards.qmk.fm. Type to filter with fuzzy search, select a keyboard, and click Import (or double-click an entry). The keyboard's info.json is fetched and converted to KLE format automatically — no file download required. This is equivalent to downloading a keyboard's info.json and using From File, but without the manual steps.

From VIA — Search and import any keyboard directly from a curated index of VIA-ready keyboards. A searchable list is loaded from https://adamws.github.io/keyboard-pcbs/keyboard_list.json. Type to filter with fuzzy search, select a keyboard, and click Import (or double-click an entry). The keyboard's VIA layout JSON is fetched from the the-via/keyboards GitHub repository (v3/ directory), converted to KLE format automatically, and VIA metadata is preserved. This is equivalent to downloading a VIA layout JSON and using From File, but without the manual steps.

From Preset — Browse the ready-made layouts that ship with kle-ng and load one with a click. Some presets are available in many languages. See Presets.

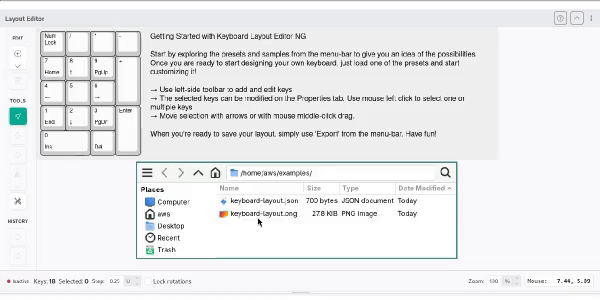

Drag and Drop

Drag layout files directly onto the canvas area.

Supported file formats: JSON (KLE, VIA/Vial, QMK), PNG (with embedded layout data), Ergogen YAML

Share Links

Open layouts shared via URL directly in the browser:

• kle-ng share link: https://editor.keyboard-tools.xyz/#share=NrDeC...
• kle-ng short link: https://editor.keyboard-tools.xyz/?s=7kQ2mBx9Lp
• Direct Gist ID: https://editor.keyboard-tools.xyz/#gist=<gist-id>
• Universal URL format: https://editor.keyboard-tools.xyz/#url=<url>
  • Supports GitHub Gist URLs and Ergogen URLs as the url= parameter

Short links

A share link carries the whole layout in the URL, which makes it long — often several thousand characters. A short link stores the layout on kle-ng's server instead and puts a short id in the URL.

• Anyone can open a short link; creating one requires signing in.
• Short links never expire.
• Two people who shorten the same layout get the same link — identical layouts are stored once and share an id. The id itself is random, so it cannot be worked out from a layout you hold.

To create one, sign in, then use the caret next to Share Link and choose Create short link. A dialog explains the consequences before anything is stored: a short link is public, it cannot be deleted or withdrawn once created, and kle-ng may retain the stored layout. Creating one is only confirmed from that dialog — the menu item itself stores nothing.

Once created, the dialog shows the link in a field with a Copy button and stays open until you close it. Nothing is written to the clipboard unless you press Copy, so creating a link never replaces what you were already holding, and the field is still there if something else overwrites the clipboard before you paste. Closing the dialog without saving the link is recoverable anyway: shortening the same layout again returns the same link.

The plain Share Link button still produces a self-contained #share= URL, which needs no account and no server.

GitHub Gist File Priority

When importing from a GitHub Gist, kle-ng searches for layout files in this priority order:

1. layout.json
2. keyboard.json
3. kle.json
4. Any file containing "layout" or "keyboard" in the name
5. Any .json file

The JSON file may be in any recognizable layout format.

INFO

GitHub API has rate limits for unauthenticated requests. If you encounter rate limit errors, wait a few minutes before trying again.

Exporting

Click the Export button in the toolbar to access all export options:

Available Export Formats

Option	Format	Notes
Download JSON	KLE JSON	Standard KLE format
Download KLE Internal JSON	KLE JSON	Internal format with metadata: an object with meta and a keys array, one entry per key
Download PNG	PNG	Canvas-quality image with embedded layout data
Download HTML	HTML	Self-contained keyboard render
Download SVG	SVG	Vector graphics
Download QMK JSON	QMK info.json	Only available when keys have matrix coordinates
Download VIA JSON	VIA/Vial JSON	Only available when VIA metadata is present
Edit in Ergogen Web GUI	URL (new tab)	Opens ergogen.xyz with the layout preloaded
Open in Shield Wizard (ZMK)	URL (new tab)	Opens the ZMK Shield Wizard with the layout preloaded

Share links are not in the Export menu. The Share Link button next to it copies a shareable #share= URL, and when you are signed in, its caret offers Create short link — see Short links.

Open in External Web Tools

Two Export options hand the current layout off to an external web app instead of producing a file. kle-ng encodes the layout into the target app's URL (compressed KLE data in the URL hash) and opens it in a new tab, so there is no file to download or paste.

• Edit in Ergogen Web GUI — opens ergogen.xyz with the layout loaded as an Ergogen config.
• Open in Shield Wizard (ZMK) — opens the ZMK Shield Wizard, which builds a physical layout from your keys so you can configure a custom ZMK shield without writing code.

Shield Wizard (ZMK) hand-off

When you choose Open in Shield Wizard (ZMK):

• Only physical switches are sent — ghost and decal keys are skipped, since they don't represent real switches.
• The layout travels in the URL hash (https://shield-wizard.genteure.com/#kle=…), so it is decoded entirely in your browser; nothing is uploaded to a server.
• The wizard opens on its Layout tab with the keys already placed.

Matrix row/col is inferred

kle-ng sends physical geometry (positions, sizes, rotations), not matrix wiring. The Shield Wizard derives each key's row/col from physical position by default. If you need deterministic matrix coordinates, give every key a row,col legend before exporting (the same top-left row,col annotation used for QMK export) — the wizard honors those legends when all keys have them, and otherwise falls back to geometry inference.

QMK Export

Layouts with matrix-annotated keys can be exported to QMK info.json format.

Requirements

• Keys must have matrix coordinates in the top-left label (format: row,col)
• Keyboard must have a name set in the Keyboard Metadata panel

If these are missing, Download QMK JSON will be unavailable in the Export menu.

Export Process

When you export to QMK format:

1. Current keyboard name and author (from Keyboard Metadata) are used as keyboard_name and manufacturer
2. All matrix-annotated keys are reconstructed with their current positions, dimensions, and rotations
3. Original QMK metadata (processor, USB config, url, etc.) is preserved from the imported _kleng_qmk_data if available
4. Key positions are rounded to 6 decimal places to remove floating-point noise

Multi-Layout Export

QMK-imported keyboards automatically use the layout membership mechanism:

When you import a QMK file with multiple layouts, keys are tagged with layout membership in the labels[9] position (bottom-left legend area). On export, kle-ng uses these tags to reconstruct the original named layouts:

• Shared keys — Keys with empty labels[9] appear in every reconstructed layout
• Layout-specific keys — Keys with labels[9] containing semicolon-separated layout indices (e.g., "0", "1;2", "0;1;2") appear only in the layouts listed
• Layout names — Preserved from the original QMK info.json import

INFO

The layout membership tags in labels[9] are set automatically during QMK import. You can manually edit or add these tags if you need to reorganize layouts after import. Simply edit the key's label (position 9) with the layout indices you want it to belong to, using semicolon-separated values (e.g., "0;1" for layouts 0 and 1).

VIA/Vial keyboards use a different, independent mechanism:

VIA and Vial layouts encode layout alternatives as option,choice labels (e.g., 0,0, 0,1) at one of the key label positions. kle-ng detects this scheme automatically and generates one QMK layout per distinct choice. The option number groups related choices; the choice number selects the variant. This is the native VIA format — it is not related to the QMK membership path above; both are fully supported.

Example

Suppose you imported a QMK file with two layouts: LAYOUT_iso (index 0) and LAYOUT_ansi (index 1). In the flat view:

• Keys at matrix [0,0] through [4,11] have labels[9] = "" (empty) → shared, appear in both layouts
• Keys at matrix [3,12] through [4,14] have labels[9] = "0" → ISO variant only
• Keys at matrix [3,12] through [4,14] have labels[9] = "1" → ANSI variant only

When exported, the QMK info.json contains two separate layout definitions:

• LAYOUT_iso: all shared keys + keys tagged with layout 0
• LAYOUT_ansi: all shared keys + keys tagged with layout 1

Troubleshooting Import/Export Issues

JSON Parse Errors

Import fails with a parse error — Verify the file is valid JSON. Common causes: trailing commas, single quotes instead of double quotes, or a file saved with non-JSON content. Try opening the file in a text editor to inspect it.

GitHub Gist Issues

GitHub Gist import fails — GitHub API rate limits unauthenticated requests to 60 per hour per IP. If you hit the limit, wait about an hour before trying again. Alternatively, download the raw JSON and import From File.

Ergogen Compatibility

Ergogen import produces unexpected positions — Ergogen's coordinate origin and key rotation conventions differ from KLE. kle-ng aims to preserve positions faithfully, but always cross-check the result against Ergogen's own preview before using the output for manufacturing.

VIA Export Unavailable

"Download VIA JSON" is greyed out — VIA export is only available after importing a VIA file or manually adding VIA metadata in the Keyboard Metadata panel. See VIA & Vial Format for details.
